Plastic Sheet Butt Welding Machine RPH Series | RIYANG STORE
Plastic Sheet Butt Welding Machine RPH Series | RIYANG STORE






Catalogue de Produit | Plastic Sheet Welding Machines |
---|---|
Marque | RIYANG |
Modèle | RPH1500, RPH2000, RPH3000, RPH4000, RPH4500, RPH5000, RPH6000, RPH7000 |
Certificate | CE, ISO9001 |
Packing Material | Plywood Box |
MOQ | 1set |
Power | Pneumatic |
Category | Plastic Sheet Welding |
Weldable Material | HDPE, PP, PVC, PVDF sheet, etc |
Welding Type | Butt Welding |
Applicable Sheet Thickness | 3mm-60mm |
Operation | Automatic |
Port | Shanghai |
modalité de paiement | L/C, Western Union, T/T, Paypal |
Heure à jour | 2023/11/29 |
Info en détails

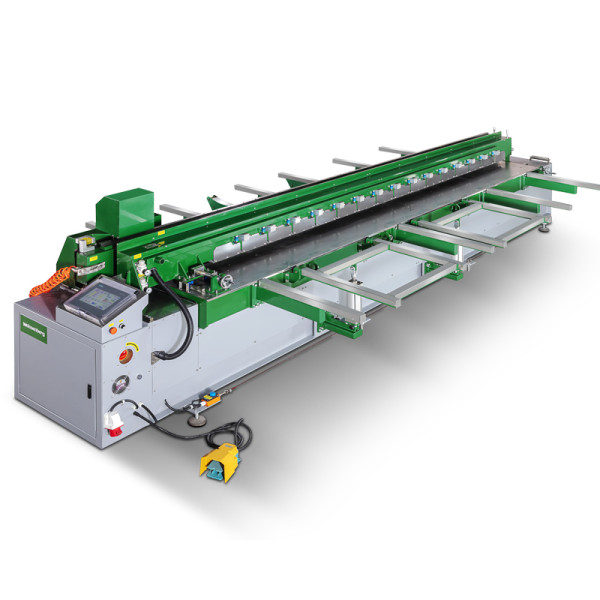

Plastic Sheet Butt Welding Machine RPH Series
Product Details
|
|||||||||
MODEL
|
RPH1500 | RPH2000 |
RPH3000
|
RPH4000
|
RPH4500 | RPH5000 | RPH6000 | RPH7000 | |
MAX WORKING LENGTH | 1500MM | 2000MM | 3000MM | 4000MM | 4500MM | 5000MM | 6000MM | 7000MM | |
SHEET THICKNESS | 3MM-20MM | 3MM - 25MM | 3MM - 25MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | 3MM - 30MM | |
POWER CONSUMPTION | 3KW | 4KW | 6KW | 9KW | 9KW | 9KW | 12KW | 12KW | |
COMPRESSED AIR CONNECTION(bar) | 6-8 KG/CM2 | ||||||||
SHEETING LOCKING CLAMPS | PNEUMATIC | ||||||||
WELDING SYSTEM | CNC |


Featured by
- New steel structure, the mechanical synchronous transmission technology, through the pressure regulating valve, pressure in the weld region to achieve uniform.
- High density locking clamps that provide an homogeneous pressure distribution
- Compliant with welding standards DVS 2207. Suitable for all types of thermoplastic sheets (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…).
- The Control system adopts Siemens PLC, with intuitive touch screen.
- According to the materials data select specific welding pressure and temperature.
- 3mm-30mm welding ability, special welding thickness up 40 to 60mm.
- Led lights through the entire welding area.
More Options
- 90°-welding device
- Cylinder welding
- T welding
- Splitting of clamping area into two or more parts
- Remote control (with cable)
- Signal horn
- USB interface to document the welding data on a USB stick
-
