La machine de fusion bout à bout à commande manuelle se caractérise par une utilisation facile, légère et rapide.
Accueil / tous / Plastic Sheet Welding Machines /
Plastic Sheet Welding Machine S-ZP3000A | RIYANG STORE
Plastic Sheet Welding Machine S-ZP3000A | RIYANG STORE




Catalogue de Produit | Plastic Sheet Welding Machines |
---|---|
Marque | RIYANG Butt Fusion Machine Manufacturer |
Modèle | S-ZP3000A, S-ZP4000A |
Certificate | CE, ISO9001 |
Packing Material | Plywood Box |
MOQ | 1set |
Port | Shanghai |
modalité de paiement | L/C, Western Union, T/T, Paypal |
Heure à jour | 2023/6/2 |
Info en détails

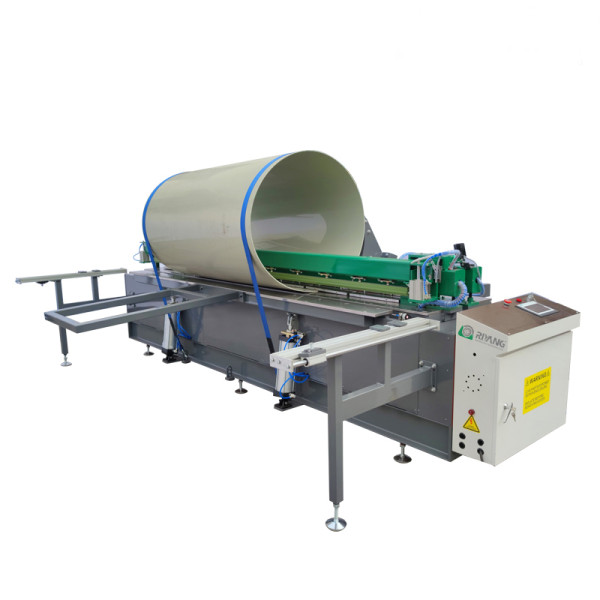

Plastic Sheet Welding Machine S-ZP3000A/4000A
Product Details
|
||
MODEL
|
S-ZP3000A
|
S-ZP4000A
|
BENDING LENGTH | 3025MM | 4025MM |
MACHINE LENGTH | 3025MM | 4025MM |
WELDING AREA LIGHTING | LED | LED |
OPERATION PRESSURE
|
0.6 - 0.8 N/MM2
|
0.6 - 0.8 N/MM2 |
AIR PRESSURE | 8.0 BAR | 8.0 BAR |
POWER SUPPLY STANDARD | 380V | 380V |
MACHINE DIMENSION | 4500x2400x1200 MM | 5600x2400x1200 MM |
TOTAL WEIGHT | 3000KGS | 3800KGS |
WELDING&BENDING MATERIALS | PP, PE, PVDF... | PP, PE, PVDF... |
WELDING THICKNESS | 3 - 30 MM | 3 - 30 MM |
HEATING ELEMENT SIZE | 3200x20x50 MM | 4200x22x55 MM |
WELDING HEATED KNIFE POWER | 4KW | 5KW |
MIN. DIA. OF PIPE | 500MM | 800MM |
BENDING THICKNESS | 3 - 25 MM | 3 - 25 MM |
MIN. CHANNEL CROSS-SECTION OF BENDING | 320x420 | 370x450 |
UPPER BENDING HEATING ELEMENT SIZE | 3200x30x50 MM, 82° | 4200x30x50 MM, 82° |
LOWER BENDING HEATING ELEMENT SIZE | 3200x28x45 MM, FLAT | 4200x28x45 MM, FLAT |
BENDING HEATED KNIFE POWER | 8KW | 10KW |
BENDING ANGLE | 0° - 95° | 0° - 95° |


Featured by
- Our patented design, plastic sheet bending, and welding integrated machine.
- Bending angle adjustable 0-95 °. suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
- The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
- Control system Siemens PLC, 7-inch color touch screen.
- Data parameters are automatically selected according to the material a particular welding pressure, temperature, and time.
- 3mm-30mm welding capabilities, special welding thickness up to 40mm, 60mm.
3mm-25mm bending capability.

- Manufacturing water tanks and containers
- Plastic devices
- Ventilation systems
- Water treatment systems
- Scrubber
- Environmental technology
- Swimming pool
- Transportation and logistics.
